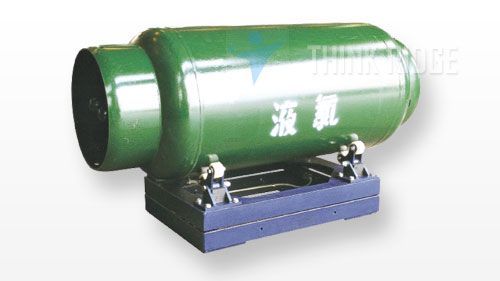

The series CP of electronic steel-cylinder steelyard ismainly applicable to measure stored liquid gas, such as liquid chlorine gas,liquid ammoniac gas, etc. This steelyard adopts frame construction of steelyardbody, which is convenient for cleaning. The surface of series CP appliesspecial kind of antiseptic coating, which is antiseptic-resistant. It isinstalled a gyro heel trestle in order to fit turning the steel-cylinder. Italso forms complete set that is weighing sensor with high degree of accuratetype for slicing beam and intelligent weighting display appearance. Thissteelyard owns high degree of accuracy, rapid speed of weighing and stability,it applies extensively to weigh stored liquid gas of steel-cylinder inwaterworks, agrochemical factory, chemical plant, and so on.
This series of electronic steelyard can allocateweighing display device with different functions to achieve the function ofweighing, controlling automatically and transmitting signals.
| Technique index | |
| Precision class | III |
| Product model | SCS-1/2 |
| Working temperature of indicator | -10℃～+40℃ |
| Working temperature of platform cell | -20℃～+65℃ |
| platform size | 0.8m×1.2m |
The technique parameter and specification `
| Product model | SCS-1 | SCS-2 | SCS-3 |
| Capacity | 1000 | 2000 | 3000 |
| Interval | 0.5 | 1.0 | 1.0 |
| load cell capacity | 1000 | 2000 | 2000 |
| Platform size | Product serial number | ||
| 800×1200×300 | CP-1-0812 | CP-2-0812 | CP-3-0812 |
Kit enclosure-- The steel bottle bracket
| Floor specification | Product serial number |
| 800×1200×100 | CPC-0812 |
