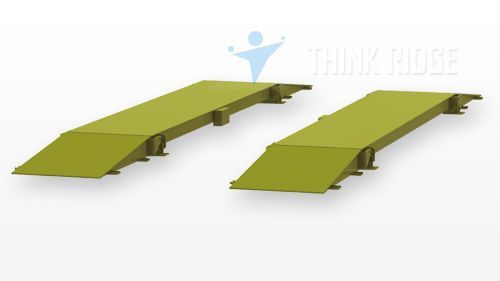

SZ-T Axle Scale

Production standard

GB7723-2002“ fixed electronic weighing equipment

JJG539-1997“ digital indicating scale meteragecalibration regulation


product modelS(Z)CS-1S(Z)CS-2S(Z)CS-3S(Z)CS-15
MAX capacity12315
(kg)interval 0.5115
load cell capacity0.5127.5
load cell quantities44412
1.0x1.0***
1.2x1.2****
1.2x1.5****
platform  dimensions 1.2x1.8****
1.5x1.5****
widthxlength1.5x2.0****
( m )0.75x3.6****
(mm) platform hight909090150
Indicator working envirmoment Temperature  -10℃~+40℃    relative humidity <95%

Load cell environment temperature
-20℃~+60℃

Power and voltage
220VAC(-15%~+10%)     50±1Hz
Precision classIII
pecification of ramp
width (mm)length(m)elevation angleWeight(kg)
100010004.78° 69
120010004.78° 83
150010004.78° 102
200010004.78° 137
750(S)10004.78° 150


Floor scale adopt SBBsingle beam load cell,main  technical parameter as follow
:
 Recommend excite volatage      6~15V(DC/AC)
 MAX excite volatage            20V(DC/AC)
 Rated Output                  2±0.1% mv/V
 Non-linearity                     0.02%F.S
 Hysteresis:                     0.02%F.S
 Repeatability                    0.01%F.S
 Creep                        0.02%F.S / 30min
 Output  impedance               350± 1W
 Safe overload                    150%F.S
 Ultimate  overload                250%F.S
