Place of Origin:Jiangsu, China (Mainland)

Brand Name:Think&Ridge weighing system

Model Number:ck floor scale

Type:Floor Scale

Power Supply:220v 50hz

Display Type:Yaohua

Rated Load:2000kg

Accuracy:0.5kg

serial/mode no:1,2,3,5,10t

material:carbon steel

color:blue

specification:1.2*1.2 1.5*1.5

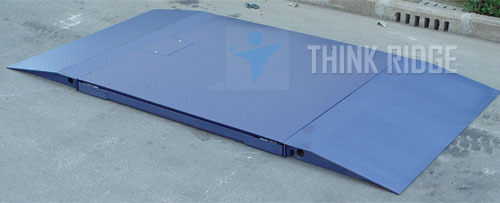

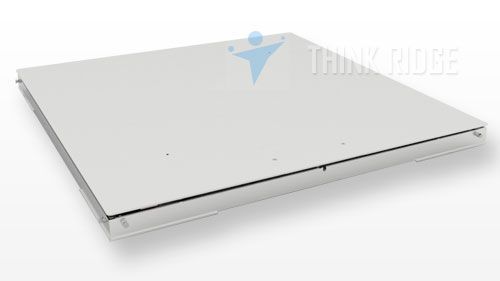

CK electronic platform scale (1,2,3,5,10t)

Electronic platform scale, weighing floor scale, pattern steel floor

Ultra low floor

CK electronic floor scale  (1,2,3,5,10t) .

The weighing platforms are suitable for daily use in dry and wet areas. Plus, many models are approved for operation in hazardous areas. Different sensor technologies - strain gauge technology or electromagnetic force compensation - guarantee highly accurate weighing.

This platform scale adopts the carbon steel welding platform; the structure is composed by the scale body and the frame, assembling with four single ended shear beam load cells and the intellectualization indicator. This system is in high precision, with the rapid weighing speed, reliable working stability and the convenient installment and maintenance.

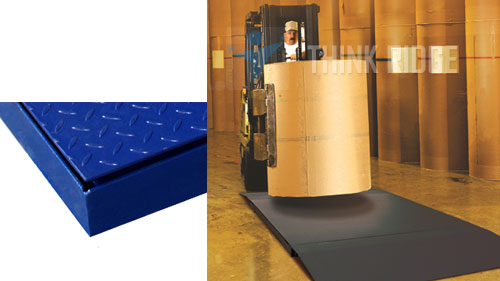

The scale mainly uses in storehouse, workshop, weighing the lifted cargo and the cargo carried by small vehicle. Slope, frame and the column can be optioned as the auxiliary device.

Technique index

Precision class:   Ⅲ

Working temperature of indicator: -10℃～+40℃

Working temperature of platform/load cell: -20℃～+65℃

Power supply: 110～220AVC, 50～60Hz

Structure feature:

Platform scale with frame

Pattern steel floor.

Ultra low floor structure.

The platform composed of scale platform and frame.

Automatic replacement structures.

No need to  adjust the limit.

Epoxy baking of the surface.

Optional parts:

Slope, The frame of floor scale, Column, Anti-explosion choice
