Place of Origin:Jiangsu, China (Mainland)

Brand Name:Think&Ridge

Model Number:CF

Type:Floor Scale

material:stainless steel

Stainless steel scale/Stainless steel load cell

Ultra low floor structure

The platform composed by scale body and frame

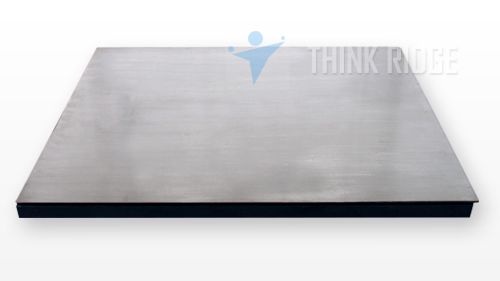

Stainless steel scale

This platform scale adopts the stainless steel welding platform, the structure of platform is composed by the module and the frame, the stainless steel is Ocr18Ni9, assembled with four load cells in high precision and the intellectualization weighing indicator. This system has high preicision, the rapid speed. The reliable working stability, the installment and maintenance is also convenient.

This scale mainly uses in the industry such as chemical industry, drugs, manufacture, food, coating, which has higher request to the environment sanitation or in the corrosive environment. It is also suitable to the weighing cargo by hoist, shovel and the small vehicle. We can install the auxiliary unit to adapt user’s all kinds of expansion application demands. The user can select and purchase the slope, the frame of floor scale, the column according to their needs.

Structure characteristics:

•Stainless steel floor/Stainless steel load cell

•Ultra low floor structure

•The platform composed by scale body and frame

•Automatic replacement

•No need to adjust the limit

•The superficial deactivation processes

•Floor specification(LxW)(mxm):0.8x0.8,0.8x1.0,1.0x1.0,1.0x1.2,1.2x1.2,1.2x1.5,1.2x1.8,1.5x1.5,1.5x2.0

Technique index

Precision class:  Ⅲ

Working temperature of indicator: -10℃～+40℃

Working temperature of platform/load cell: -20℃～+65℃

Optional parts:

Slope, The frame of floor scale (stainless steel/carbon steel), Column, Anti-explosion choice

capicity :(1,2,3,5t)

NOTE：our company can make the different weighing capacity and the platform dimension according to requirement
