Place of Origin:Jiangsu, China (Mainland)

Brand Name:Think&Ridge

Model Number:CC-M

Type:Floor Scale

Power Supply:220v 50hz

Display Type:shanghai yaohua

Rated Load:2t

Accuracy:0.5kg

Serial/Model No:0.3,0.6,1.5T

colour:green

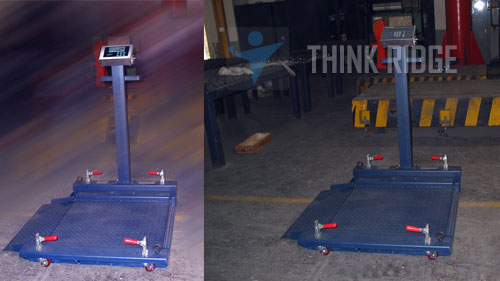

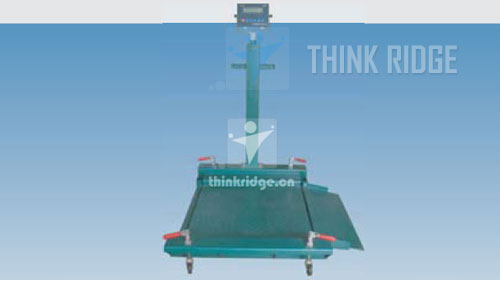

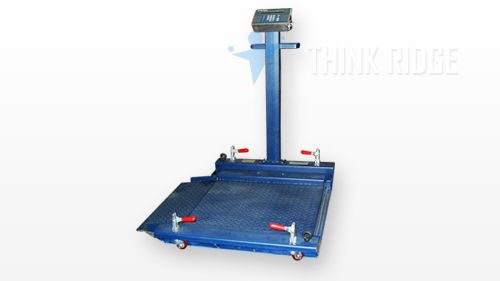

low platform scale, Ultra low floor 35mm-45mm

Automatic replacement structure

short slope 30m

low platform scale ,moveable scale.

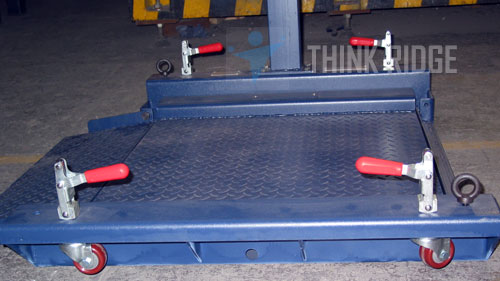

This platform scale is designed by the new concept. Changed the structure of the ordinary platform scale, and installed four high precision load cells and the junction box in the two sides of the platform, so it I all vehicle, the tubular vessel up to the platform. The installment and maintenance is also convenient. The material of this kind scale has two choices: Entire stainless steel, and assort with stainless steel load cell, which has welding seal structure; Carbon steel, assort with alloy load cell.

The main adoption is the weighing of the small vehicle, the circular stores the material tube box. It main used to weigh the cargo in the business trade warehouse and its delivering center, the delivering center of postal service, the railway, the road cargo consigns for shipment, the finished product storehouse of medicine, food enterprise, half-finished product storehouse as well as all kind of production line.

Automatic replacement structure.

Ultra low floor 35mm-45mm.

Ultra short slope 30m.

No need to adjust the limit

Superficial epoxy baking / sand blasting,polishes and anode processes.

Floor specification(LxW)(mxm):0.8x0.8,1.0x1.0,1.2x1.2.
