Place of Origin:Jiangsu, China (Mainland)

Brand Name:Think&ridge

Model Number:cc

Type:Floor Scale

Power Supply:220v 50 hz

Display Type:Yaohua

Rated Load:5t

Accuracy:0.5kg

serial/mode no:0.3,0.6,1.5T

colour:silver

material:stainless steel

type:low profile

ultra low floor scale

Carbon steel/ stainless steel scale

Ultra low floor 35mm-45mm

Ultra short slope 30m

Ultra low floor scale

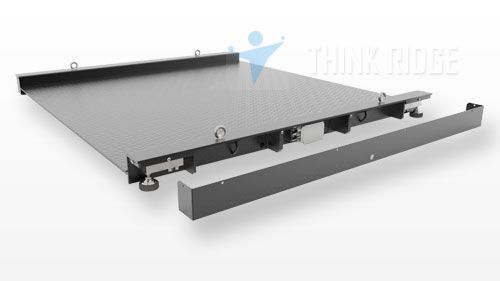

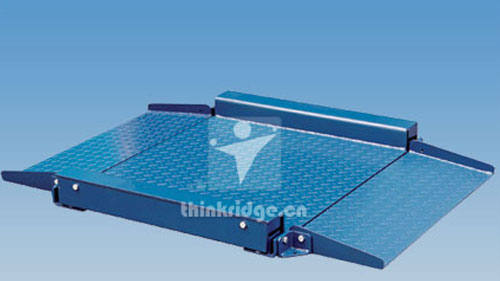

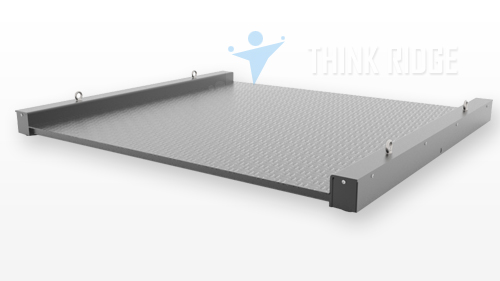

This platform scale is designed by the new concept. It Changed the structure of the ordinary platform scale, and installed with four high precision load cells and the junction box in the two sides of the platform, the platform is very near to the ground, the assembled slope also should be short, so as to push the small vehicle and container up to the platform easily. The maintenance is also convenient. There are two kinds of the material can be option in this kind of scale: entire stainless steel assembled with stainless steel load cells which are with welded and sealed structure; carbon steel assembled with alloy load cell.

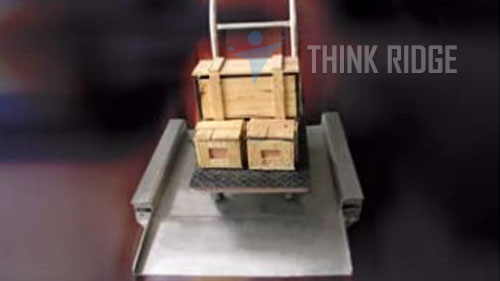

It mainly used in the weighing of the small vehicle, the circular stores/boxes. It applies to Weight the cargo in the warehouse, delivering center, the delivering center of postal service, the railway, the road cargo consigns for shipment, the finished product storehouse of medicine, food enterprise, half-finished product storehouse and all kind of production line.

CC low profile floor scale (0.3,0.6,1.5t).

electronic scale,floor scale.

Carbon steel/ stainless steel floor.

Automatic replacement structure.

Ultra low floor 35mm-45mm.

Ultra short slope 30m.

No need to adjust the limit.

Superficial epoxy baking / sand blasting,polishes and anti skid processes.

Floor specification(LxW)(mxm):0.8x0.8,1.0x1.0,1.2x1.2.

Technique index

The work temperature of indicator: -10℃～+40℃

Precision class:   Ⅲ

The work temperature of load cell:  -20℃～+65℃

Relative humidity:   <95%<>

Model specification
